Capacity1

256GB

512GB

1TB

Package Dimension

Width:

77.6mm

Height:

163mm

Depth:

8.25mm

Weight:

227g

Display

Super Retina XDR display

6.9‑inch (diagonal) all‑screen OLED display

2868‑by‑1320-pixel resolution at 460 ppi

The iPhone 16 Pro Max display has rounded corners that follow a beautiful curved design, and these corners are within a standard rectangle. When measured as a standard rectangular shape, the screen is 6.86 inches diagonally (actual viewable area is less).

Dynamic Island

Always-On display

ProMotion technology with adaptive refresh rates up to 120Hz

HDR display

True Tone

Wide color (P3)

Haptic Touch

2,000,000:1 contrast ratio (typical)

1,000 nits max brightness (typical); 1,600 nits peak brightness (HDR); 2,000 nits peak brightness (outdoor); 1 nit minimum brightness

Fingerprint-resistant oleophobic coating

Support for display of multiple languages and characters simultaneously

Dynamic Island

Always-On display

ProMotion technology with adaptive refresh rates up to 120Hz

HDR display

True Tone

Wide color (P3)

Haptic Touch

2,000,000:1 contrast ratio (typical)

1,000 nits max brightness (typical); 1,600 nits peak brightness (HDR); 2,000 nits peak brightness (outdoor); 1 nit minimum brightness

Fingerprint-resistant oleophobic coating

Support for display of multiple languages and characters simultaneously

Splash, Water, and Dust Resistance3

Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529

Chip

A18 Pro chip

New 6‑core CPU with 2 performance and 4 efficiency cores

New 6‑core GPU

New 16‑core Neural Engine

Apple Intelligence

Built into your iPhone, Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.4

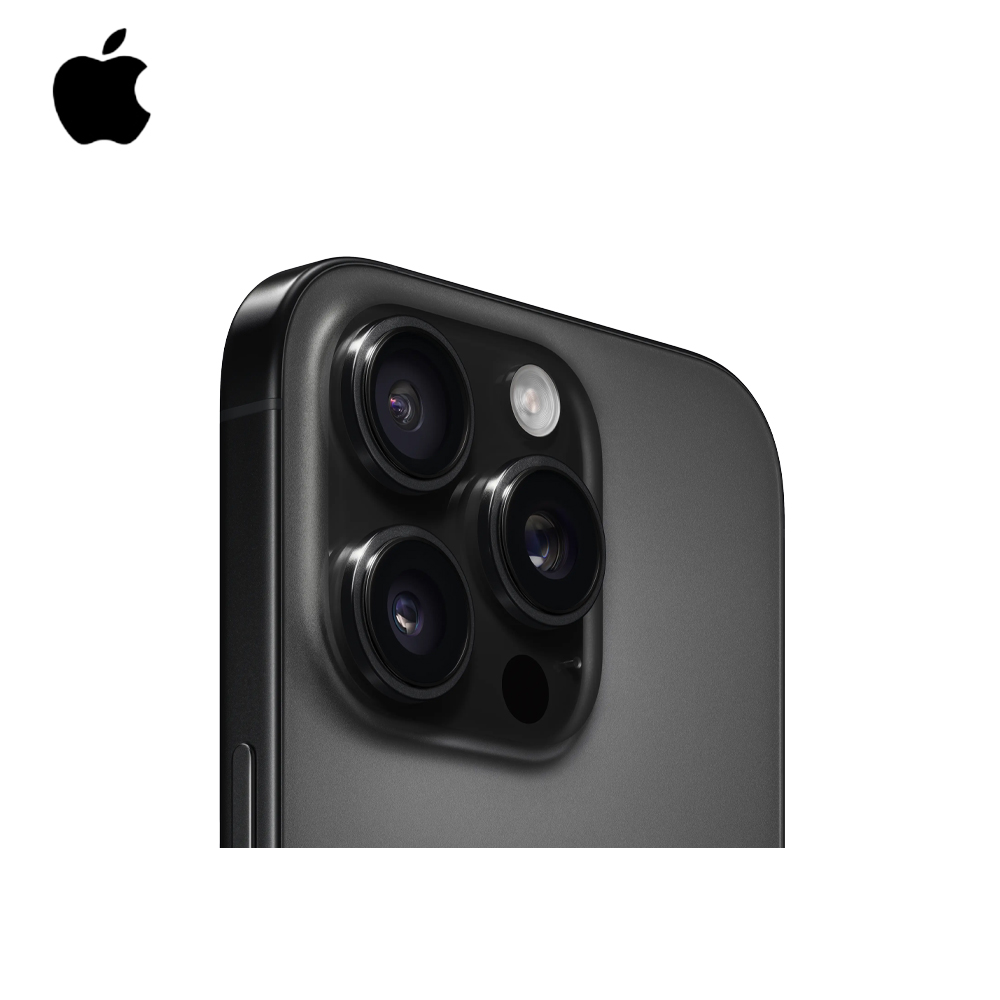

Camera

Pro camera system

48MP Fusion: 24mm, ƒ/1.78 aperture, second‑generation sensor‑shift optical image stabilization, 100% Focus Pixels, support for super‑high‑resolution photos (24MP and 48MP)

Also enables 12MP 2x Telephoto: 48mm, ƒ/1.78 aperture, second‑generation sensor‑shift optical image stabilization, 100% Focus Pixels

48MP Ultra Wide: 13mm, ƒ/2.2 aperture and 120° field of view, Hybrid Focus Pixels, super-high-resolution photos (48MP)

12MP 5x Telephoto: 120mm, ƒ/2.8 aperture and 20° field of view, 100% Focus Pixels, seven-element lens, 3D sensor-shift optical image stabilization and autofocus, tetraprism design

5x optical zoom in, 2x optical zoom out; 10x optical zoom range

Digital zoom up to 25x

Camera Control

Customizable default lens (Fusion)

Sapphire crystal lens cover

Adaptive True Tone flash

Photonic Engine

Deep Fusion

Smart HDR 5

Next-generation portraits with Focus and Depth Control

Portrait Lighting with six effects

Night mode

Night mode portraits enabled by LiDAR Scanner

Panorama (up to 63MP)

Latest-generation Photographic Styles

Spatial photos

48MP macro photography

Apple ProRAW

Wide color capture for photos and Live Photos

Lens correction (Ultra Wide)

Advanced red-eye correction

Auto image stabilization

Burst mode

Photo geotagging

Image formats captured: HEIF, JPEG, and DNG

Video Recording

4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion), or 120 fps (Fusion)

1080p Dolby Vision video recording at 25 fps, 30 fps, 60 fps, or 120 fps (Fusion)

720p Dolby Vision video recording at 30 fps

Cinematic mode up to 4K Dolby Vision at 30 fps

Action mode up to 2.8K Dolby Vision at 60 fps

Spatial video recording at 1080p at 30 fps

ProRes video recording up to 4K at 120 fps with external recording

Log video recording

Academy Color Encoding System

Macro video recording, including slo‑mo and time‑lapse

Slo‑mo video support for 1080p up to 240 fps and 4K Dolby Vision up to 120 fps (Fusion)

Time‑lapse video with stabilization

Night mode Time‑lapse

QuickTake video up to 4K Dolby Vision at 60 fps

Second‑generation sensor‑shift optical image stabilization for video (Fusion)

3D sensor‑shift optical image stabilization and autofocus for video (Telephoto)

Digital zoom up to 15x

Audio zoom

True Tone flash

Cinematic video stabilization (4K, 1080p, and 720p)

Continuous autofocus video

Take 8MP still photos while recording 4K video

Playback zoom

Video formats recorded: HEVC, H.264, and ProRes

Spatial Audio and stereo recording

Four studio-quality mics

Wind noise reduction

Audio Mix

TrueDepth Camera

12MP camera

ƒ/1.9 aperture

Autofocus with Focus Pixels

Retina Flash

Photonic Engine

Deep Fusion

Smart HDR 5

Next-generation portraits with Focus and Depth Control

Portrait Lighting with six effects

Animoji and Memoji

Night mode

Latest-generation Photographic Styles

Apple ProRAW

Wide color capture for photos and Live Photos

Lens correction

Auto image stabilization

Burst mode

4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion), or 120 fps (Fusion)

1080p Dolby Vision video recording at 25 fps, 30 fps, 60 fps, or 120 fps (Fusion)

Cinematic mode up to 4K Dolby Vision at 30 fps

ProRes video recording up to 4K at 60 fps with external recording

Log video recording

Academy Color Encoding System

Slo-mo video support for 1080p at 120 fps

Time‑lapse video with stabilization

Night mode Time-lapse

QuickTake video up to 4K at 60 fps in Dolby Vision

Cinematic video stabilization (4K, 1080p, and 720p)

Spatial Audio and stereo recording

Wind noise reduction

Audio Mix

Face ID

Enabled by TrueDepth camera for facial recognition

Peace of Mind

Emergency SOS

Crash Detection5

Cellular and Wireless

Model A3293*

FDD-5G NR (Bands n1, n2, n3, n5, n7, n8, n12, n20, n25, n26, n28, n30, n66, n70, n75, n76)

Model A3296*

TDD-5G NR (Bands n38, n40, n41, n48, n53, n77, n78, n79)

FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 66)

TDD-LTE (Bands 34, 38, 39, 40, 41, 42, 48, 53)

UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)

GSM/EDGE (850, 900, 1800, 1900 MHz)

All models

5G (sub‑6 GHz) with 4×4 MIMO6

Gigabit LTE with 4×4 MIMO6

Wi‑Fi 7 (802.11be) with 2×2 MIMO7

Bluetooth 5.3

Second-generation Ultra Wideband chip8

Thread networking technology

NFC with reader mode

Express Cards with power reserve

Location

Precision dual-frequency GPS (GPS, GLONASS, Galileo, QZSS, BeiDou, and NavIC)

Digital compass

Wi-Fi

Cellular

iBeacon microlocation

Video Calling9

FaceTime video calling over cellular or Wi‑Fi

FaceTime HD (1080p) video calling over 5G or Wi‑Fi

Share experiences like movies, TV, music, and other apps in a FaceTime call with SharePlay

Screen sharing

Portrait mode in FaceTime video

Spatial Audio

Voice Isolation and Wide Spectrum microphone modes

Optical zoom with rear‑facing camera

Audio Calling9

FaceTime audio

Voice over LTE (VoLTE)6

Wi‑Fi calling6

Share experiences like movies, TV, music, and other apps in a FaceTime call with SharePlay

Screen sharing

Spatial Audio

Voice Isolation and Wide Spectrum microphone modes

Audio Playback

Supported formats include AAC, APAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos

Spatial Audio playback

User‑configurable maximum volume limit

Video Playback

Supported formats include HEVC, H.264, AV1, and ProRes

HDR with Dolby Vision, HDR10+/HDR10, and HLG

Up to 4K HDR AirPlay for mirroring, photos, and video out to Apple TV (2nd generation or later) or AirPlay‑enabled smart TV

Video mirroring and video out support: Up to 4K HDR through native DisplayPort output over USB-C or USB-C Digital AV Adapter (model A2119; adapter sold separately)10

External Buttons and Connectors

Action button features

Silent mode, Focus, Camera, Flashlight, Voice Memo, Recognize Music, Translate, Magnifier, Controls, Shortcut, or Accessibility

Camera controls

Exposure, Depth, Zoom, Cameras, Styles, Tone

Charging Expansion

USB-C connector with support for:

Charging

DisplayPort

USB 3 (up to 10 Gbps)11

Power and Battery12

Video playback

Up to 27 hours

Video playback (streamed)

Up to 22 hours

Audio playback

Up to 85 hours

Video playback

Up to 33 hours

Video playback (streamed)

Up to 29 hours

Audio playback

Up to 105 hours

Both models

Built‑in rechargeable lithium‑ion battery

MagSafe wireless charging up to 25W with 30W adapter or higher13

Qi2 wireless charging up to 15W13

Qi wireless charging up to 7.5W13

Fast-charge capable:

Up to 50% charge in around 30 minutes13 with 20W adapter or higher (available separately) paired with USB-C charging cable, or 30W adapter or higher paired with MagSafe Charger (both available separately)

MagSafe

Wireless charging up to 25W with 30W adapter or higher13

Magnet array

Alignment magnet

Accessory Identification NFC

Magnetometer

Sensors

Face ID

LiDAR Scanner

Barometer

High dynamic range gyro

High-g accelerometer

Proximity sensor

Dual ambient light sensors

Operating System

iOS 18

iOS is the world’s most personal and secure mobile operating system, packed with powerful features and designed to protect your privacy.

Accessibility

Built-in accessibility features supporting vision, mobility, hearing, speech, and cognitive needs help you get the most out of your iPhone — in the ways that work best for you.

Features include:

VoiceOver

Zoom

Magnifier

Switch Control

AssistiveTouch

Eye Tracking

Closed Captions

Personal Voice

Live Speech

Type to Siri

Vocal Shortcuts

Spoken Content

SIM Card

Dual SIM (nano-SIM and eSIM)14

Dual eSIM support14

Rating for Hearing Aids

Hearing Aid Compatible

Mail Attachment Support Viewable document types

.jpg, .tiff, .gif (images); .doc and .docx (Microsoft Word); .htm and .html (web pages); .key (Keynote); .numbers (Numbers); .pages (Pages); .pdf (Preview and Adobe Acrobat); .ppt and .pptx (Microsoft PowerPoint); .txt (text); .rtf (rich text format); .vcf (contact information); .xls and .xlsx (Microsoft Excel); .zip; .ics; .usdz (USDZ Universal)

System Requirements

Apple Account (required for some features)

Internet access15

Syncing to a Mac or PC requires:

macOS Catalina 10.15 or later using the Finder

macOS High Sierra 10.13 through macOS Mojave 10.14.6 using iTunes 12.8 or later

Windows 10 or later using iTunes 12.12.10 or later (free download from apple.com/ph/itunes/download)

Environmental Requirements

Operating ambient temperature: 0° to 35° C

Nonoperating temperature: −20° to 45° C

Relative humidity: 5% to 95% noncondensing

Operating altitude: tested up to 3,000 meters

In the Box

iPhone with iOS 18

USB‑C Charge Cable (1m)

Documentation
